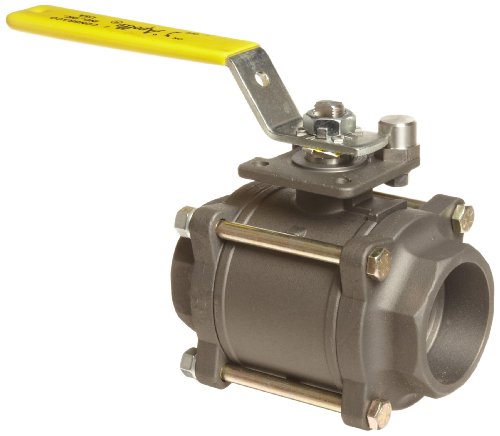

The Apollo 83R-240 series carbon steel three-piece inline ball valve has a lever handle, and socket weld ends on both ends. It has an actuator ready ISO 5211 mounting pad for automation and stainless steel 316 ball and stem. The valve body is made of carbon steel for strength and greater hardness than stainless steel, and the ball and stem are made of stainless steel 316 for greater corrosion resistance than standard steel. This valve has a lever handle with a vinyl sleeve for manual on/off control. Reinforced polytetrafluoroethylene (RPTFE) seats and modified polytetrafluoroethylene (MPTFE) stem packing reduce the risk of leakage. The valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the connecting pipe for maximum operating efficiency. This valve has socket-weld ends for connecting to unthreaded pipe ends. The joined pieces are welded together to create a tight seal against leaks. The maximum pressure rating is 800 pounds per square inch (gauge) (psig) for cold working pressure (CWP), 150 psig for saturated steam, and the maximum vacuum pressure is 29 in Hg. The temperature range is -50 to 500 degrees Fahrenheit. This valve meets the following standards for quality assurance: WW-V-35C; Manufacturers Standardization Society (MSS) SP-110; National Association of Corrosion Engineers (NACE) MR-01-76.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Apollo Valves manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention. The company, founded in 1928 and headquartered in Matthews, NC, meets international standard International Organization for Standardization (ISO)/IEC 17025:2005 and makes products that meet International Organization for Standardization (ISO) and American National Standards Institute (ANSI) standards.
